Electrical Distribution Panel
Electrical Distribution Panel
An Electrical Distribution Panel—also known as a Distribution Board (DB) or Breaker Panel—is a critical component in any electrical system. It serves as the centralized point where incoming electrical power is split into subsidiary circuits while providing protection through fuses or circuit breakers.
Scope of Services:
- Power System Design & Engineering
- Load calculation and feasibility studies
- Single-line diagrams (SLD), layouts, and detailed engineering
- Procurement & Supply
- High-quality electrical equipment including transformers, switchgear, panels, cables, UPS, and lighting systems
- Sourced from trusted brands and OEMs
- Installation & Erection
- On-site electrical works including cabling, trenching, panel installation, and terminations
- Civil and structural support works as required
- Testing & Commissioning
- Comprehensive pre-commissioning tests
- Final commissioning and system performance validation
- Project Management
- Timeline-based execution with strict adherence to safety, quality, and industry standards
- Regular progress reports and stakeholder communication
- Documentation & Handover
- Complete set of as-built drawings, operation manuals, and certification
- On-site training for client personnel (if required)
Key Features:
Power Distribution
Safely distributes electricity from the main power source to various circuits within a building or facility.
Circuit Protection
Equipped with Miniature Circuit Breakers (MCBs), Molded Case Circuit Breakers (MCCBs), or fuses to safeguard against overloads and short circuits.
User Safety
Ensures electrical safety with clearly labeled circuits, proper insulation, earthing provisions, and fault detection mechanisms.
Customization
Available in a wide range of configurations based on the number of circuits, phase type (single-phase/three-phase), and application needs.
Durable Construction
Made with powder-coated steel or stainless steel enclosures that provide corrosion resistance and comply with IP ratings (IP54, IP65, etc.) for dust and water protection.
Applications:
- Residential complexes
- Commercial buildings
- Industrial facilities
- Data centers
- Healthcare institutions
Types of Panels We Offer:

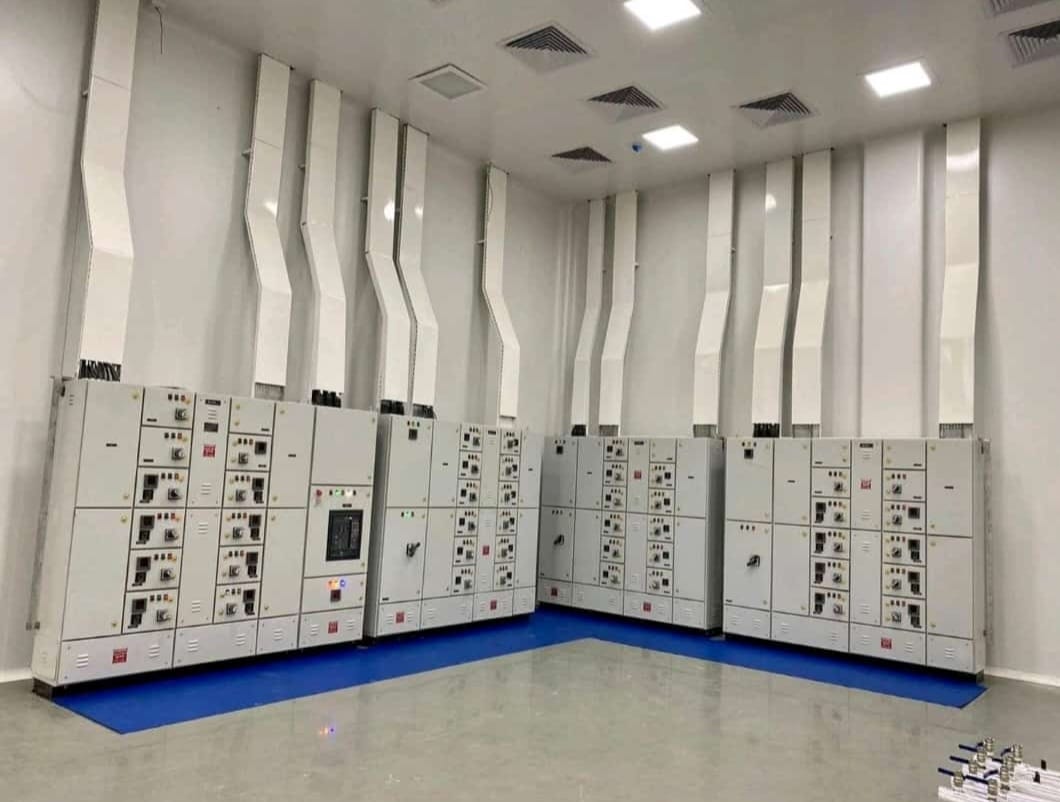

- Main Distribution Boards (MDBs) – Central hub for main power distribution in large buildings.
- Sub-Distribution Boards (SDBs) – For localized circuit control in different areas or floors.
- Final Distribution Boards – Controls and protects the end-use circuits.
- Lighting Distribution Panels – Specialized for managing lighting loads efficiently.
- Technical Specifications: Voltage Range: 230V / 400V AC
- Frequency: 50/60 Hz
- Rated Current: Up to 6300A (customizable)
- Material: CRCA Steel, SS, Aluminum

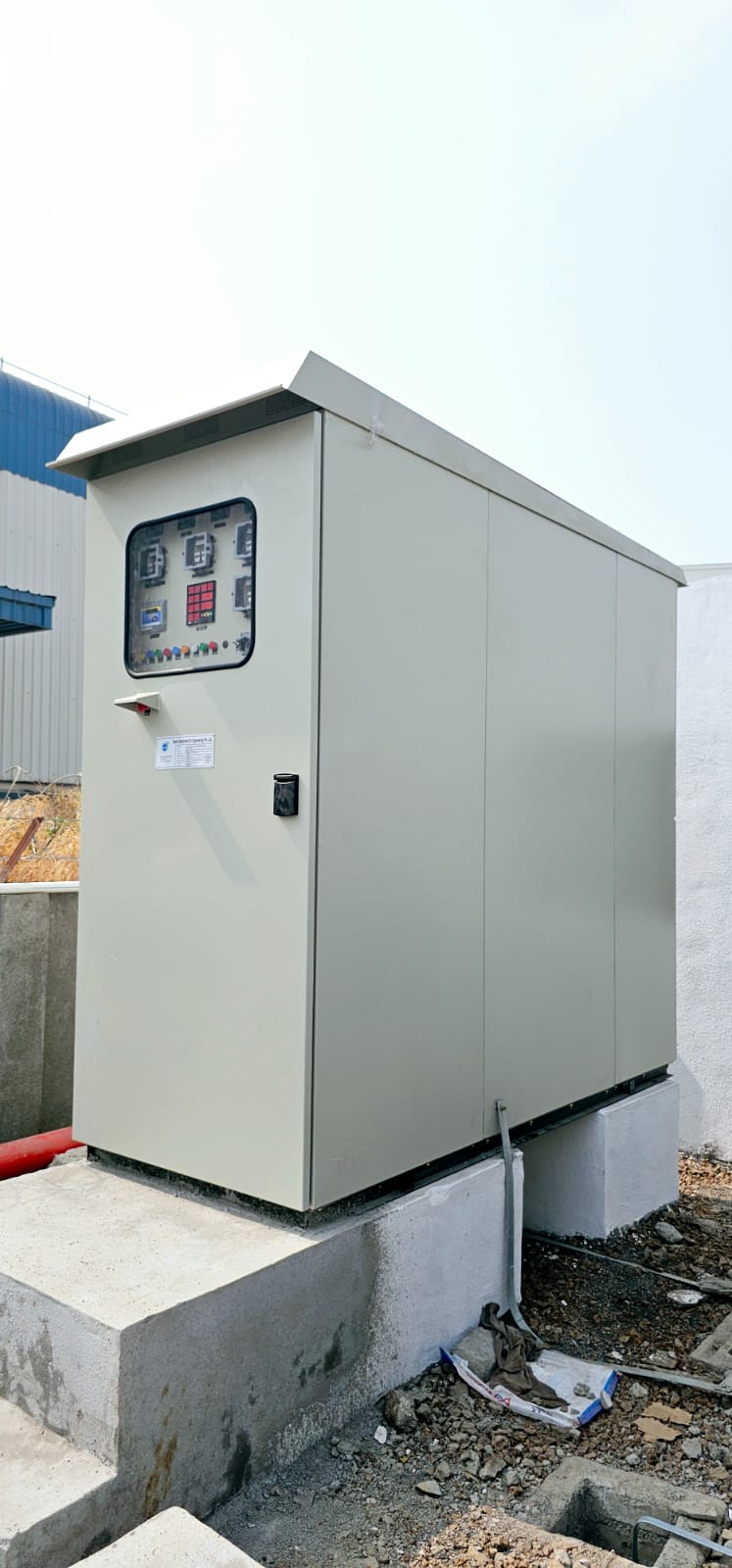

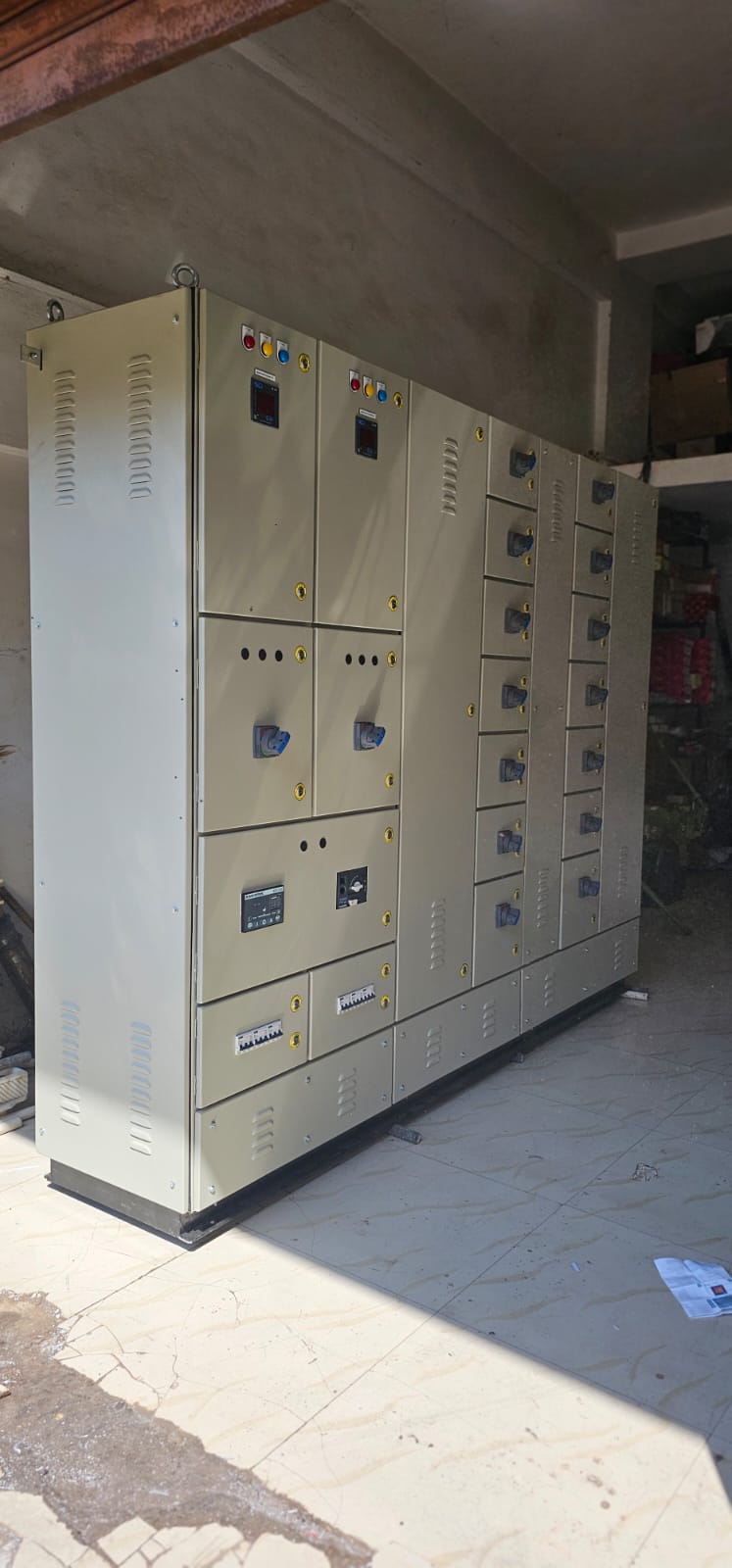

- Mounting: Wall-mounted or floor-standing
- Standards: IEC 61439, IS 8623, CE compliant
Why Choose Us?
- Custom-built solutions tailored to your load and safety requirements
- Certified quality with compliance to national and international standards
- After-sales support including maintenance and troubleshooting
- Expert engineering team with years of experience in electrical panel design and installation
Frequently Asked Questions (FAQs)
An Electrical Distribution Panel, also known as a Distribution Board or Breaker Panel, is a central unit that distributes incoming power into various circuits. It also houses circuit breakers or fuses to protect these circuits from overload or short circuits.
We offer:
Main Distribution Boards (MDBs)
Sub-Distribution Boards (SDBs)
Final Distribution Boards
Lighting Distribution Panels
Each type is designed for specific roles in managing and protecting electrical loads.
Our panels include Miniature Circuit Breakers (MCBs), MCCBs, earthing systems, insulation, fault detection, and IP-rated enclosures for protection against dust and water.
Yes. We offer fully customized panels based on circuit requirements, voltage, current rating, phase configuration (single/three-phase), and application type.
We use powder-coated CRCA steel, stainless steel (SS), and aluminum, depending on the application. All enclosures comply with IP54, IP65, or higher standards as needed.
Our panels are designed for:
Voltage: 230V / 400V AC
Frequency: 50/60 Hz
Current: Up to 6300A
These can be tailored as per project specifications.
